Custom DFM Report Service
Our DFM report can analyze potential risks based on the product‘s 3D data, drawing requirements, and manufacturing process characteristics. We evaluate four aspects — part geometry, material selection, assembly process, and tooling feasibility — and then provide specific optimization recommendations.

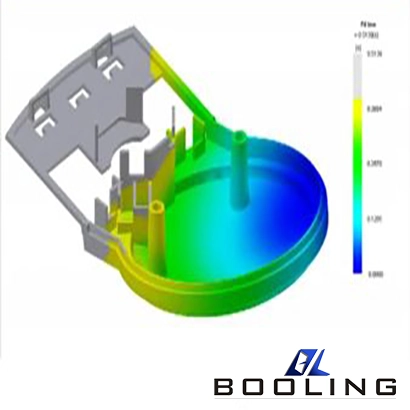

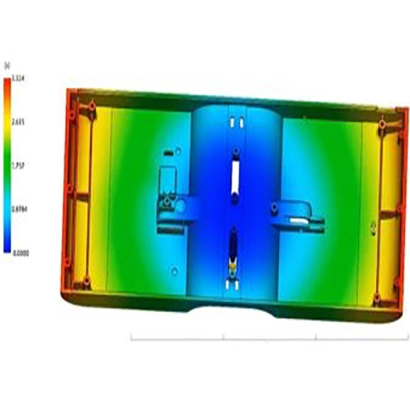

DFM Report
The DFM Report is a critical step in ensuring that our product design can achieve stable mass production.
We frequently use DFM Reports in the manufacturing of injection molds and plastic parts. With the DFM Report, we can largely avoid production stoppages, mold rework, and other issues caused by design flaws—problems that would otherwise disrupt our customers’ production schedules.
Content of DFM Assessment Report
Draft Angle Analysis
Our service ensures that parts can be smoothly ejected from the mold, preventing drag marks or deformation marks.
Uniform Wall Thickness Assessment
We can identify areas that are too thick or too thin, providing optimization suggestions to eliminate defects such as sink marks and warpage during injection molding, thereby reducing cycle time.
Rib and Snap-Fit Design Optimization
Our service ensures that products not only achieve rapid prototyping and demolding, but also maintain their structural strength.
Parting Line Strategy
This service helps determine the optimal parting line location, simplifies the mold structure, reduces product complexity, lowers production costs, and meets the product’s aesthetic requirements.
Tolerance Analysis
This service can evaluate the reasonableness of design tolerances and provide achievable, cost-effective tolerance recommendations.
Material Manufacturability Assessment in DFM Report
We can use the DFM report to assess whether the material’s fluidity, shrinkage rate, and molding temperature range are suitable for the wall thickness and structure of the produced part. This allows us to predict potential issues such as short shots, warpage, and sink marks for the customer in advance.
Services Provided by DFM
Reduce Number of Parts
With this service, we can reduce your BOM cost by combining multiple fasteners or brackets into a single part.
Simplify Assembly
With this service, we can optimize the product’s joining processes and reduce tooling and manual operation steps, thereby decreasing assembly time.
Avoid Undercuts
We can redesign the orientation or position of product features (such as snaps, bosses, etc.) to prevent unnecessary undercuts from occurring.
Download more guides about our DFM Report Services to get more tips and resources.
